標題: IIC模塊化編程，使用PCF8591輸出正弦波 [打印本頁]

作者: zjc666321 時間: 2018-7-2 13:51
標題: IIC模塊化編程，使用PCF8591輸出正弦波
主程序：#include<IIC.h>
sbit  SCL=P2^0;
sbit  SDA=P2^1;
uchar code Tosin[255]={    //定義code數組，放在rom中。
0x80,0x83,0x86,0x89,0x8D,0x90,0x93,0x96,
0x99,0x9C,0x9F,0xA2,0xA5,0xA8,0xAB,0xAE,
0xB1,0xB4,0xB7,0xBA,0xBC,0xBF,0xC2,0xC5,
0xC7,0xCA,0xCC,0xCF,0xD1,0xD4,0xD6,0xD8,
0xDA,0xDD,0xDF,0xE1,0xE3,0xE5,0xE7,0xE9,
0xEA,0xEC,0xEE,0xEF,0xF1,0xF2,0xF4,0xF5,
0xF6,0xF7,0xF8,0xF9,0xFA,0xFB,0xFC,0xFD,
0xFD,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFE,0xFD,
0xFD,0xFC,0xFB,0xFA,0xF9,0xF8,0xF7,0xF6,
0xF5,0xF4,0xF2,0xF1,0xEF,0xEE,0xEC,0xEA,
0xE9,0xE7,0xE5,0xE3,0xE1,0xDE,0xDD,0xDA,
0xD8,0xD6,0xD4,0xD1,0xCF,0xCC,0xCA,0xC7,
0xC5,0xC2,0xBF,0xBC,0xBA,0xB7,0xB4,0xB1,
0xAE,0xAB,0xA8,0xA5,0xA2,0x9F,0x9C,0x99,
0x96,0x93,0x90,0x8D,0x89,0x86,0x83,0x80,
0x80,0x7C,0x79,0x78,0x72,0x6F,0x6C,0x69,
0x66,0x63,0x60,0x5D,0x5A,0x57,0x55,0x51,
0x4E,0x4C,0x48,0x45,0x43,0x40,0x3D,0x3A,
0x38,0x35,0x33,0x30,0x2E,0x2B,0x29,0x27,
0x25,0x22,0x20,0x1E,0x1C,0x1A,0x18,0x16,
0x15,0x13,0x11,0x10,0x0E,0x0D,0x0B,0x0A,
0x09,0x08,0x07,0x06,0x05,0x04,0x03,0x02,
0x02,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x02,
0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,
0x0A,0x0B,0x0D,0x0E,0x10,0x11,0x13,0x15,
0x16,0x18,0x1A,0x1C,0x1E,0x20,0x22,0x25,
0x27,0x29,0x2B,0x2E,0x30,0x33,0x35,0x38,
0x3A,0x3D,0x40,0x43,0x45,0x48,0x4C,0x4E,
0x51,0x55,0x57,0x5A,0x5D,0x60,0x63,0x66,
0x69,0x6C,0x6F,0x72,0x76,0x79,0x7C
};
void main()
{
      uint i;
I2C_init();
      while(1)
   {
   for(i = 255; i > 0; i--)
         {
         I2C_TransmitData(0x40, Tosin[i]);
     //0 0-analogue output enable glag  0 0 analogue  input programming ,0 0-auto analogue increase flag 11-通道選擇位
   }
   }

}

頭文件：
#ifndef __IIC_H__
#define __IIC_H__

#include"reg52.h"
#include"intrins.h"

#define uchar unsigned char //定義無符號字符型變量
#define uint  unsigned int  //定義無符號整型變量

void  I2C_init();    //IIC初始化
void  I2C_Start();  //IIC開始
void  I2C_Stop();    //IIC停止

void  Master_ACK(bit i); //主機發送非應答和應答
bit Test_ACK();    //從機應答和非應答檢測

void  I2C_send_byte(uchar byte); //IIC發送一字節數據，8位
uchar I2C_read_byte(); //IIC讀取一字節數據，8位

bit I2C_TransmitData(uchar ADDR, DATA); //IIC發送一字節數據，給總線上的從機發送。bit返回值函數用來檢測一字節數據是否發送成功給從機。
uchar I2C_ReceiveData(uchar ADDR);       //IIC接收一字節數據，從總線的從機上接收數據。uchar返回值函數用來返回從從機所讀取的一字節數據。

void delay_5us(); //5us延時函數
void delayms(uint z); //ms級延時函數

#endif//定義結束

頭文件對應的.c文件：
#include<IIC.h>
#include<reg52.h>
uchar device_ADDR=0x90; //在這里可以改器件地址
sbit SCL=P2^0;
sbit SDA=P2^1;
/*I2C初始化*/
void I2C_init()
{
SDA = 1;
_nop_();
SCL = 1;
_nop_();
}

/*I2C起始信號*/
void I2C_Start()
{
SCL = 1;
_nop_();
SDA = 1;
delay_5us();
SDA = 0;
delay_5us();
}

/*I2C終止信號*/
void I2C_Stop()
{
SDA = 0;
_nop_();
SCL = 1;
delay_5us();
SDA = 1;
delay_5us();
}

/*主機發送應答*/
void Master_ACK(bit i)
{
SCL = 0; // 拉低時鐘總線允許SDA數據總線上的數據變化
_nop_(); // 讓總線穩定
if (i)    //如果i = 1 那么拉低數據總線表示主機應答
{
SDA = 0;
}
else
{
SDA = 1;    //發送非應答
}
_nop_();//讓總線穩定
SCL = 1;//拉高時鐘總線讓從機從SDA線上讀走主機的應答信號
delay_5us();
SCL = 0;//拉低時鐘總線，占用總線繼續通信
_nop_();
SDA = 1;//釋放SDA數據總線。
_nop_();
}

/*檢測從機應答*/
bit Test_ACK()
{
SCL = 1;
delay_5us();
if (SDA)
{
SCL = 0;
_nop_();
I2C_Stop();
return(0);
}
else
{
SCL = 0;
_nop_();
return(1);
}
}

/*發送一個字節*/
void I2C_send_byte(uchar byte)
{
uchar i;
for(i = 0 ; i < 8 ; i++)
{
SCL = 0;
_nop_();
if (byte & 0x80)
{
SDA = 1;
_nop_();
}
else
{
SDA = 0;
_nop_();
}
SCL = 1;
_nop_();
byte <<= 1; // 0101 0100B
}
SCL = 0;
_nop_();
SDA = 1;
_nop_();
}

/*I2C 讀一字節*/
uchar I2C_read_byte()
{
uchar dat,i;
SCL = 0;
_nop_();
SDA = 1;
_nop_();
for(i = 0 ; i < 8 ; i++)
{
SCL = 1;
_nop_();
if (SDA)
{
   dat |= 0x01; //
}
else
{
dat &=  0xfe; //1111 1110
}
_nop_();
SCL = 0 ;
_nop_();
if(i < 7)
{
dat = dat << 1;
}
}
return(dat);
}

/*I2C發送數據*/
bit I2C_TransmitData(uchar ADDR, DATA)
{
I2C_Start();

I2C_send_byte(device_ADDR+0);  //器件地址+0；寫入，1010，0000=0xa0.
if (!Test_ACK())
{
return(0);
}

I2C_send_byte(ADDR); //寫入IIC總線上的哪一個存儲單元,如果是PCF8591的話，就是控制字
if (!Test_ACK())
{
return(0);
}

I2C_send_byte(DATA);

if (!Test_ACK())
{
return(0);
}

I2C_Stop();
return(1);
}

/*I2C接收數據*/
uchar I2C_ReceiveData(uchar ADDR)
{
uchar DATA;
I2C_Start();
I2C_send_byte(device_ADDR+0);
if (!Test_ACK())
{
return(0);
}

I2C_send_byte(ADDR); //從哪個存儲單元讀取數據，例如AT24C02的話，有256個字節存儲單元（256*8=2048位。）ADDR可以是0-255之間的數。
//如果是PCF8591的話，ADDR就是控制字，控制字假如為0000 0010.則讀取通道2上的模擬量轉化為的數字量。
Master_ACK(0);    //

I2C_Start();
I2C_send_byte(device_ADDR+1); //發送一字節從機地址，且方向?yàn)?，為寫

if (!Test_ACK())
{
return(0);
}
DATA = I2C_read_byte();

Master_ACK(0);
I2C_Stop();
return(DATA);
}

/*5us延時函數*/
void delay_5us()
{
_nop_();
}
/*1Ms延時*/
void delayms(uint z)
{
uint x,y;
for(x = z; x > 0; x--)
for(y = 114; y > 0 ; y--);
}

這是一個簡單一點的程序，以后看情況加其他波形和波形按鍵選擇。PCF8591是8位DA輸出。Vref接的+5V。希望在這里得到大家的指正，同時歡迎大家一起交流學習！

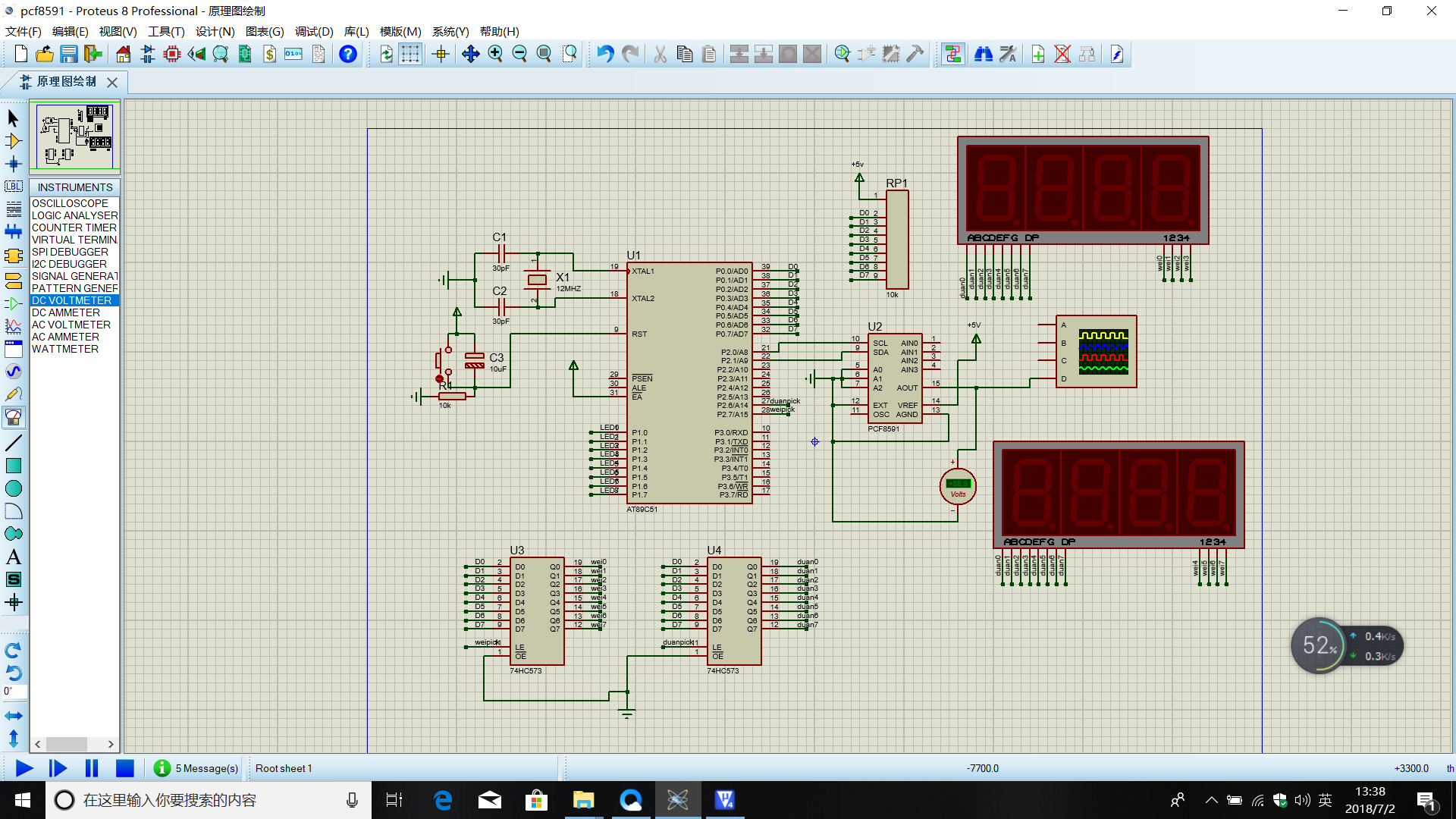

proteus仿真圖

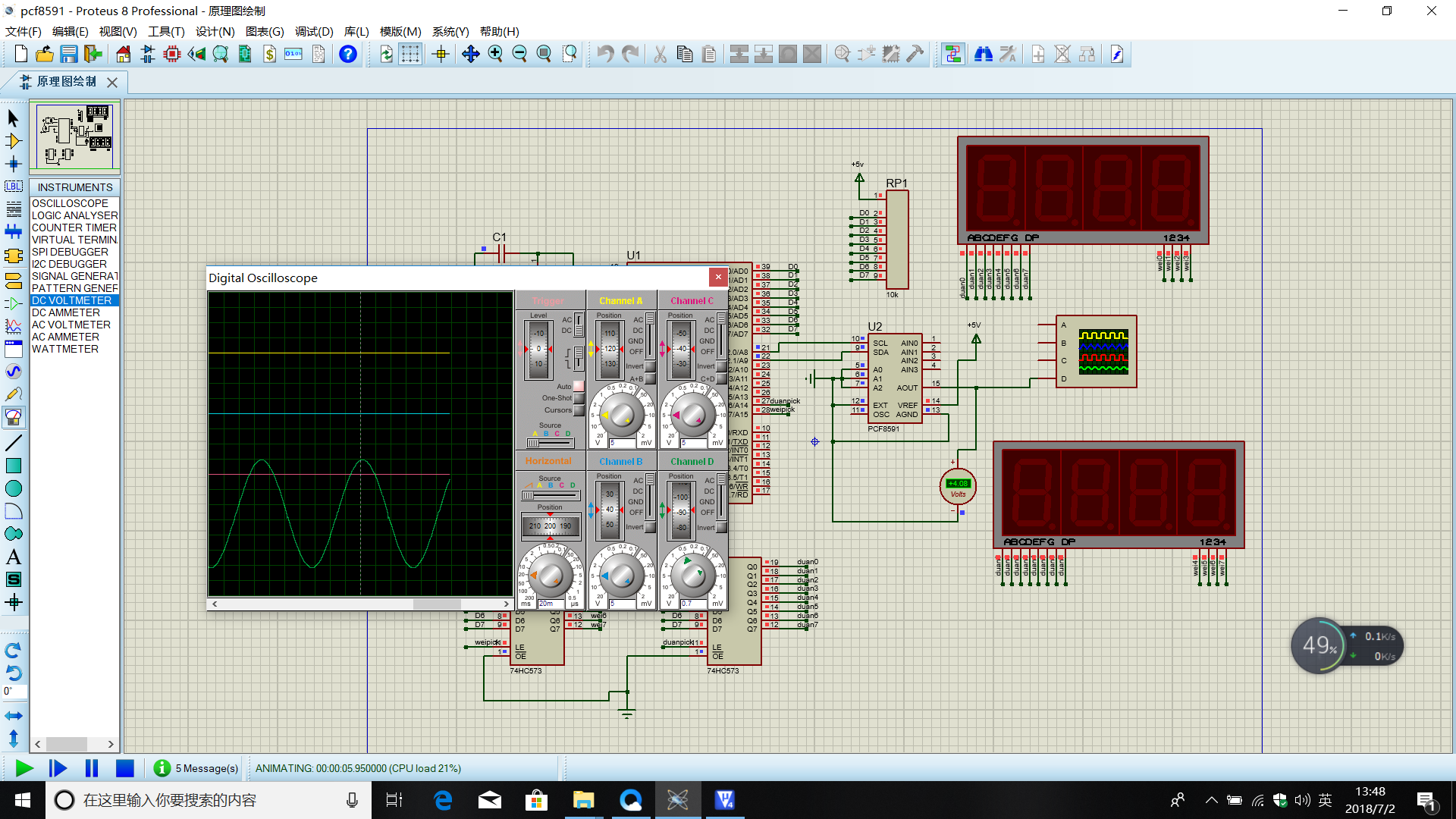

正弦波形圖

作者: zjc666321 時間: 2018-7-2 13:54
那個數碼管模塊是不需要的。�？梢圆豢�
