標題: 按鍵控制彩燈亮燈方式簡易小程序+電路圖

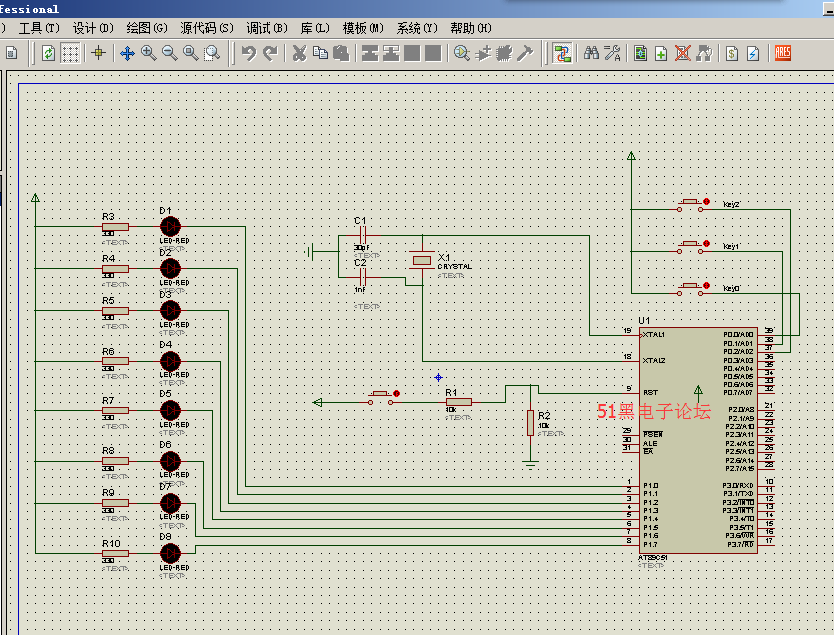

按鍵控制彩燈的仿真電路圖:




單片機源程序:
  1. /**********************劉金森 1440302103 電子信息工程*********************/
  2. #include<reg51.h>                      //51單片機頭文件
  3. #include<intrins.h>                       //包含crol(循環左移)函數所在的頭文件
  4. #define uint unsigned int
  5. void delay(int z);                   //聲明子函數
  6. unsigned char temp;                 //定義一個變量,用來給P1口賦值
  7. int i,j;
  8. sbit Key0=P0^0;
  9. sbit Key1=P0^1;
  10. sbit Key2=P0^2;                           //定義三個按鍵
  11. /**************按鍵控制函數************/
  12. uint key()
  13. {
  14.      uint temp;
  15.          Key0=0;
  16.          Key1=0;
  17.          Key2=0;
  18.      if(Key0==1)
  19.              {
  20.                 delay(500);                    //延時500毫秒,去按鍵時的抖動
  21.                          if(Key0==1)
  22.                         {
  23.             temp=0xfc;                    //1111 1100B 只有兩盞燈亮
  24.                     P1=temp;
  25.                         while(Key0)
  26.                         {
  27.                     delay(500);
  28.                     temp=_crol_(temp,1);         //將temp循環左移一位后再賦給temp
  29.                 P1=temp;                                     //將移位后的值賦給P1口,從低位到高位逐個點亮發光二極管
  30.                         }
  31.                         }
  32.
  33.               }
  34.              else if(Key1==1)
  35.              {
  36.                 delay(500);                  //延時500毫秒,去按鍵時的抖動
  37.                          if(Key1==1)
  38.                         {
  39.             temp=0x10;                   //0001 0000B 只有一盞燈不亮
  40.                     P1=temp;
  41.                         while(Key1)
  42.                         {
  43.                     delay(500);
  44.                     temp=_cror_(temp,1);        //將temp循環左移一位后再賦給temp
  45.                 P1=temp;                                     //將移位后的值賦給P1口,從低位到高位逐個點亮發光二極管
  46.                         }
  47.                         }
  48.
  49.               }
  50.                    else if(Key2==1)
  51.              {
  52.                 delay(500);                  //延時500毫秒,去按鍵時的抖動
  53.                          if(Key2==1)
  54.                         {
  55.             temp=0xfd;                  //1111 1101B 只有一盞燈亮
  56.                     P1=temp;
  57.                         while(Key2)
  58.                         {
  59.                     delay(500);
  60.                     temp=_cror_(temp,1);         //將temp循環左移一位后再賦給temp
  61.                 P1=temp;                                     //將移位后的值賦給P1口,從低位到高位逐個點亮發光二極管
  62.                         }
  63.                         }
  64.
  65.               }
  66.
  67.
  68. return temp;
  69. }
  70. void delay(int z)           //延時z毫秒
  71. {
  72.       unsigned int x,y;
  73.           for(x=z;x>0;x--)
  74.                   for(y=110;y>0;y--);
  75. }
  76. /*****************主函數*************/
  77. void main()
  78. {


  79.    …………限于本文篇幅 余下代碼請從51黑下載附件…………
復制代碼

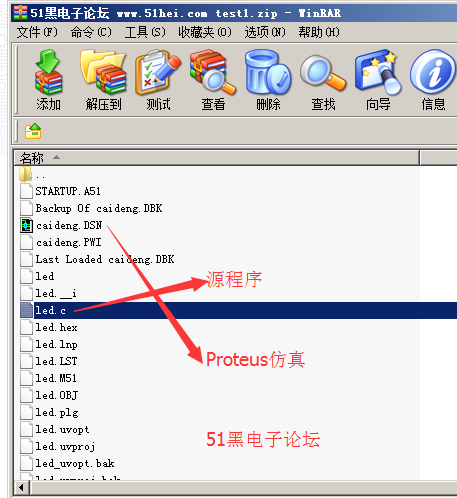

下載:
test1.zip (73.8 KB, 下載次數: 63)
