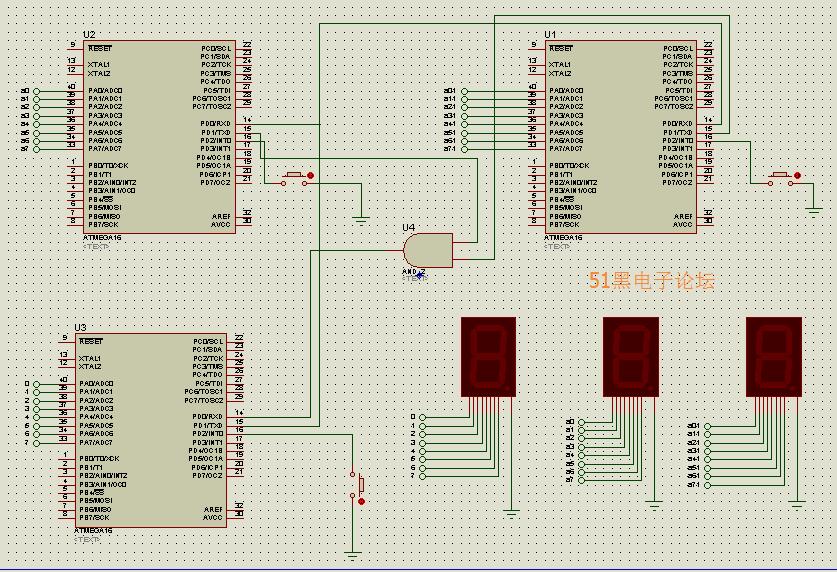

ATMEGA16 usart通信仿真原理圖如下(proteus仿真工程文件可到本帖附件中下載)
一共3個單片機,一個主機 2個從機實現(xiàn)多機通信效果

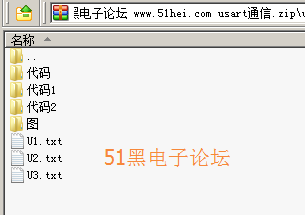

全部資料51hei下載地址:
usart通信.zip
(188.5 KB, 下載次數(shù): 81)
2018-1-14 15:18 上傳
點擊文件名下載附件
部分單片機源程序如下:
- /*****************************************************
- This program was produced by the
- CodeWizardAVR V2.05.1b Evaluation
- Automatic Program Generator
- ?Copyright 1998-2011 Pavel Haiduc, HP InfoTech s.r.l.
- Project :
- Version :
- Date : 2017/12/21
- Author : Freeware, for evaluation and non-commercial use only
- Company :
- Comments:
- Chip type : ATmega16
- Program type : Application
- AVR Core Clock frequency: 4.000000 MHz
- Memory model : Small
- External RAM size : 0
- Data Stack size : 256
- *****************************************************/
- #include <mega16.h>
- flash unsigned char led_7[10]={0x3f,0x06,0x5b,0x4f,0x66,0x6d,0x7d,0x07,0x7f,0x6f};
- unsigned char point=0;
- // External Interrupt 0 service routine
- interrupt [USART_RXC] void usart_rx_isr(void) //接收中斷服務(wù)
- {
- unsigned char status,resh,resl;
- status=UCSRA;
- resh=UCSRB;
- resl=UDR;
- if((status&(1<<4|(1<<3)|1<<2)) ==0)
- {
- resh=(resh>>1)&0x01;
-
- if (resh==0)
- PORTA=led_7[resl];
- else
- PORTA=0x00;
-
- }
- #asm("sei")
- }
- interrupt [EXT_INT0] void ext_int0_isr(void)
- {
- // Place your code here
- while(!(UCSRA&(1<<5)));
- UDR=point;
- #asm("sei")
- }
- // Standard Input/Output functions
- #include <stdio.h>
- // Declare your global variables here
- void main(void)
- {
- // Declare your local variables here
- // Input/Output Ports initialization
- // Port A initialization
- // Func7=Out Func6=Out Func5=Out Func4=Out Func3=Out Func2=Out Func1=Out Func0=Out
- // State7=0 State6=0 State5=0 State4=0 State3=0 State2=0 State1=0 State0=0
- PORTA=0x00;
- DDRA=0xFF;
- // Port B initialization
- // Func7=In Func6=In Func5=In Func4=In Func3=In Func2=In Func1=In Func0=In
- // State7=T State6=T State5=T State4=T State3=T State2=T State1=T State0=T
- PORTB=0x00;
- DDRB=0x00;
- // Port C initialization
- // Func7=In Func6=In Func5=In Func4=In Func3=In Func2=In Func1=In Func0=In
- // State7=T State6=T State5=T State4=T State3=T State2=T State1=T State0=T
- PORTC=0x00;
- DDRC=0x00;
- // Port D initialization
- // Func7=In Func6=In Func5=In Func4=In Func3=In Func2=In Func1=In Func0=In
- // State7=T State6=T State5=T State4=T State3=T State2=T State1=T State0=T
- PORTD=0x03;
- DDRD=0x02;
- // Timer/Counter 0 initialization
- // Clock source: System Clock
- // Clock value: Timer 0 Stopped
- // Mode: Normal top=0xFF
- // OC0 output: Disconnected
- TCCR0=0x00;
- TCNT0=0x00;
- OCR0=0x00;
- // Timer/Counter 1 initialization
- // Clock source: System Clock
- // Clock value: Timer1 Stopped
- // Mode: Normal top=0xFFFF
- // OC1A output: Discon.
- // OC1B output: Discon.
- // Noise Canceler: Off
- // Input Capture on Falling Edge
- // Timer1 Overflow Interrupt: Off
- // Input Capture Interrupt: Off
- // Compare A Match Interrupt: Off
- // Compare B Match Interrupt: Off
- TCCR1A=0x00;
- TCCR1B=0x00;
- TCNT1H=0x00;
- TCNT1L=0x00;
- ICR1H=0x00;
- ICR1L=0x00;
- OCR1AH=0x00;
- OCR1AL=0x00;
- OCR1BH=0x00;
- OCR1BL=0x00;
- // Timer/Counter 2 initialization
- // Clock source: System Clock
- // Clock value: Timer2 Stopped
- // Mode: Normal top=0xFF
- // OC2 output: Disconnected
- ASSR=0x00;
- TCCR2=0x00;
- TCNT2=0x00;
- OCR2=0x00;
- // External Interrupt(s) initialization
- // INT0: On
- // INT0 Mode: Falling Edge
- // INT1: Off
- // INT2: Off
- GICR|=0x40;
- MCUCR=0x02;
- MCUCSR=0x00;
- GIFR=0x40;
- // Timer(s)/Counter(s) Interrupt(s) initialization
- TIMSK=0x00;
- // USART initialization
- // Communication Parameters: 8 Data, 1 Stop, No Parity
- // USART Receiver: On
- // USART Transmitter: On
- // USART Mode: Asynchronous
- // USART Baud Rate: 9600
- UCSRA=0x00;
- UCSRB=0x9d;
- UCSRC=0x86;
- UBRRH=0x00;
- UBRRL=0x19;
- // Analog Comparator initialization
- // Analog Comparator: Off
- // Analog Comparator Input Capture by Timer/Counter 1: Off
- ACSR=0x80;
- SFIOR=0x00;
- ……………………
- …………限于本文篇幅 余下代碼請從51黑下載附件…………
