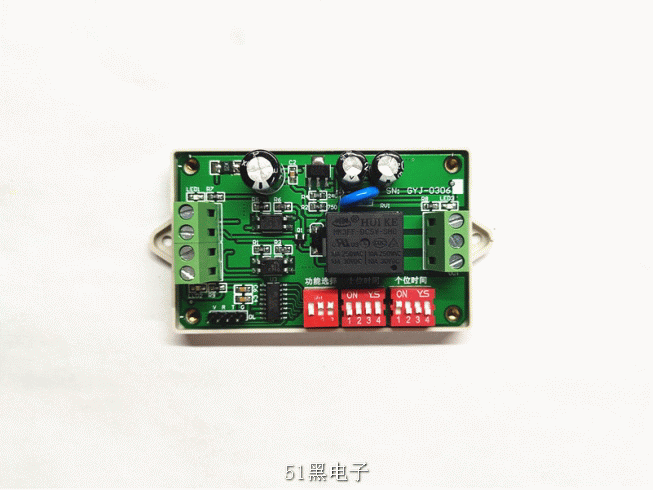

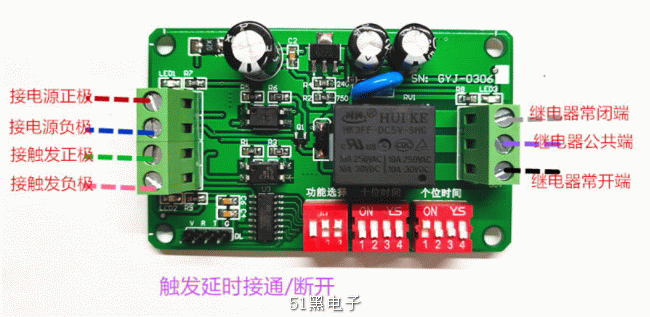

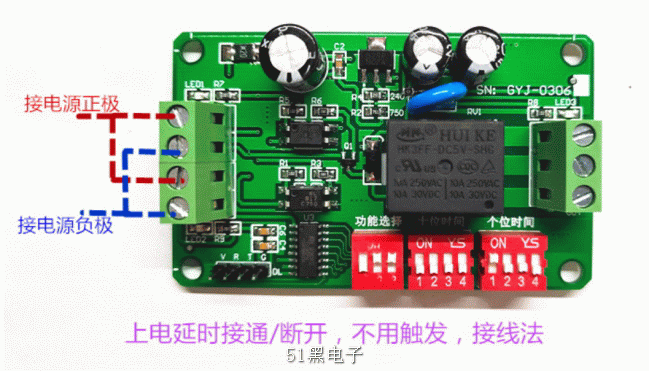

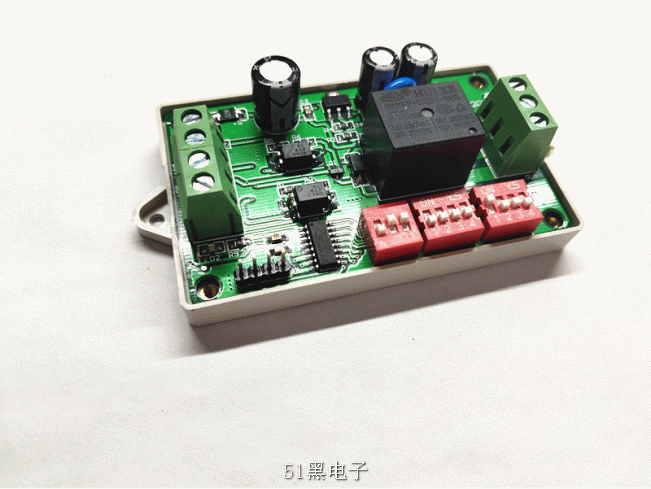

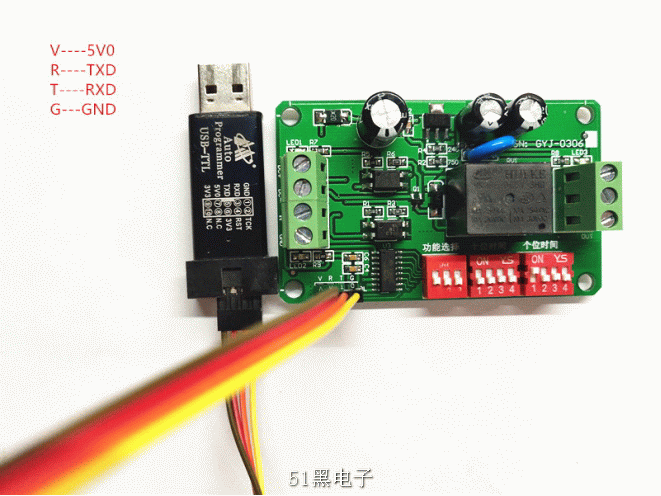

開源分享一款GYJ-0306_可編程多功能延時時間控制模塊時分秒可以設置

ID:284341 · 發表于 2023-6-28 01:43

【聲明】此程序僅用于學習與參考！
*********************************************************************/
#include <STC8F2K08S2.h>
#include <intrins.h>
#include <string.h>
#define uchar unsigned char//宏定義無符號字符型
#define uint unsigned int  //宏定義無符號整型

/**************************************************

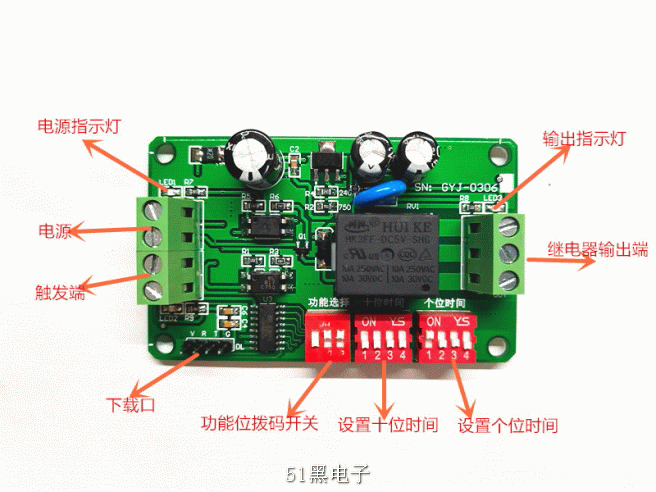

                              IO口定義
***************************************************/
sbit led = P1^0;
sbit IN1 = P5^4;
sbit set1= P1^7;
sbit set2= P1^6;
sbit set3= P1^1;

sbit ten1= P3^7;
sbit ten2= P3^6;
sbit ten3= P3^5;
sbit ten4= P3^4;

sbit b1 = P3^3;
sbit b2 = P3^2;
sbit b3 = P3^1;
sbit b4 = P3^0;
sbit OUT = P5^5;
bit bz=0,bk=0,kk=0,bt=0,kz=0,bs1=0,bs2=0,bs3=0,ss=0,g=0;
uchar ba=0;
uint dat=0,dat1=0,dat2=0,jsu=0,js=0,js1=0,js2=0;

/**************************************************
                              配置t0
***************************************************/
void Timer0Init(void)             //1毫秒@11.0592MHz
{
      AUXR |= 0x80;             //定時器時鐘1T模式
      TMOD &= 0xF0;             //設置定時器模式
TL0 = 0xCD;             //設置定時初值
      TH0 = 0xD4;             //設置定時初值
      TF0 = 0;             //清除TF0標志
      ET0 = 1;
      TR0 = 1;             //定時器0開始計時
}

/**************************************************
                              t0
***************************************************/
void InterruptTimer0() interrupt 1{//T0中斷服務函數，執行串口接收監控
         dat2=dat+dat1;
      if(dat2==0){kz=1;}else{kz=0;}       //kz當沒有撥時間時不讓定時器計數
      if((kk==1)&&(bk==0)&&(kz==0)){jsu++;}       //bk執行完畢后停止計數器計數，jsu計數
      if(ba==0)//秒
      {
         if((jsu==100)&&(g==0)){g=1;if(bt==0){OUT=1;}else{OUT=0;}}//控制上電繼電器吸合還是斷開
         if(jsu==800){led=0;}
         if(jsu==1000)//1s
         {

            jsu=0;
               led=1;
               js++;
               if((js==dat2)&&(ss==0))
               {
         js=0;
//                   bk=1;
//                   kk=0;
//                   led=0;
                  OUT=!OUT;
                     jsu=0;
                     ss=1;
               }
               if((js==dat2)&&(ss==1))
               {
         js=0;
                  bk=1;
                  kk=0;
                  led=0;
                  OUT=!OUT;
                     jsu=0;
               }
         }
      }

      if(ba==1)//分
      {
         if((jsu==100)&&(g==0)){g=1;if(bt==0){OUT=1;}else{OUT=0;}}
         if(jsu==800){led=0;}
         if(jsu==1000)//1s
         {

            jsu=0;
               led=1;
               js++;
               if(js==60)//1分
               {
                  js=0;
                        js1++;
                  if((js1==dat2)&&(ss==0))
                  {
            js1=0;
//                      bk=1;
//                      kk=0;
//                      led=0;
                     OUT=!OUT;
                        ss=1;
                        jsu=0;
                        js=0;
                  }
                     if((js1==dat2)&&(ss==1))
                  {
            js1=0;
                     bk=1;
                     kk=0;
                     led=0;
                     OUT=!OUT;
                        jsu=0;
                        js=0;
                  }
               }
         }
      }

      if(ba==2)//時
      {
         if((jsu==100)&&(g==0)){g=1;if(bt==0){OUT=1;}else{OUT=0;}}
         if(jsu==800){led=0;}
         if(jsu==1000)//1秒
         {

            jsu=0;
               led=1;
               js++;
               if(js==60)//1分鐘
               {
                  js=0;
                        js1++;
                        if(js1==60)//1小時
                        {
                        js1=0;
                        js2++;
                     if((js2==dat2)&&(ss==0))
                     {
               js2=0;
//                      bk=1;
//                      kk=0;
//                      led=0;
                     OUT=!OUT;
                              ss=1;
                              js=0;
                              js1=0;
                              jsu=0;
                     }
                              if((js2==dat2)&&(ss==1))
                     {
               js2=0;
                     bk=1;
                     kk=0;
                     led=0;
                     OUT=!OUT;
                              js=0;
                              js1=0;
                              jsu=0;
                     }
                        }
                  }
            }
         }
}
/**************************************************
                              主函數
***************************************************/
void main()
{
  Timer0Init();
  EA=1;
  ba=0;
  OUT=1;
  while(1)
  {
      if((IN1==0)&&(bz==0)){bz=1;kk=1;bk=0;ss=0;g=0;jsu=0;js=0;js1=0;js2=0;led=1;} //       bz控制輸入一次標志位，KK控制定時器計數，
      if((IN1==1)&&(bz==1)){bz=0;}

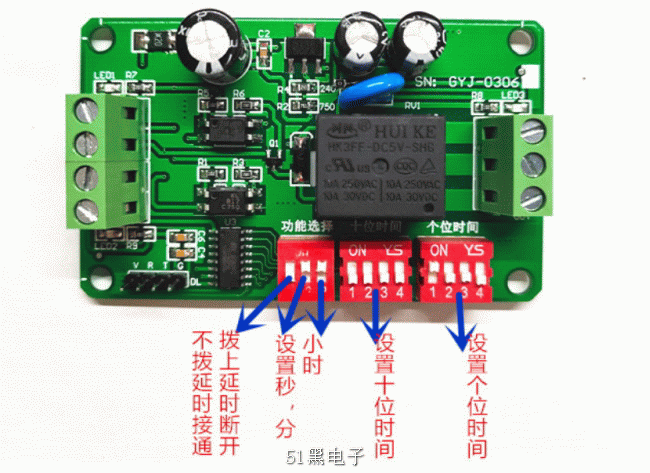

      if(set1==0){bt=1;}else{bt=0;} //撥上撥碼開關設置延時斷開，不撥延時接通
      if((set2==1)&&(set3==1)&&(bs1==0)){ba=0;bs1=1;bs2=0;bs3=0;}       //秒 ba=0
      if((set2==0)&&(set3==1)&&(bs2==0)){ba=1;bs1=0;bs2=1;bs3=0;}       //分 ba=1
      if((set2==0)&&(set3==0)&&(bs3==0)){ba=2;bs1=0;bs2=0;bs3=1;}       //時 ba=2

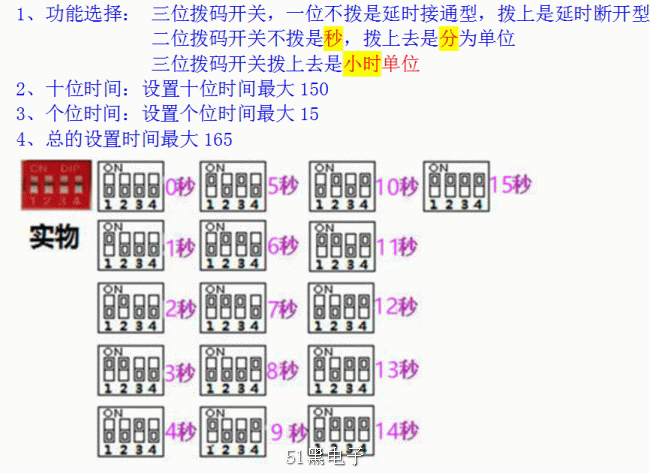

      if((b1==1)&&(b2==1)&&(b3==1)&&(b4==1)){dat=0;}//1秒
      if((b1==0)&&(b2==1)&&(b3==1)&&(b4==1)){dat=1;}
      if((b1==1)&&(b2==0)&&(b3==1)&&(b4==1)){dat=2;}
      if((b1==0)&&(b2==0)&&(b3==1)&&(b4==1)){dat=3;}
      if((b1==1)&&(b2==1)&&(b3==0)&&(b4==1)){dat=4;}
      if((b1==0)&&(b2==1)&&(b3==0)&&(b4==1)){dat=5;}
      if((b1==1)&&(b2==0)&&(b3==0)&&(b4==1)){dat=6;}
      if((b1==0)&&(b2==0)&&(b3==0)&&(b4==1)){dat=7;}
      if((b1==1)&&(b2==1)&&(b3==1)&&(b4==0)){dat=8;}
      if((b1==0)&&(b2==1)&&(b3==1)&&(b4==0)){dat=9;}
      if((b1==1)&&(b2==0)&&(b3==1)&&(b4==0)){dat=10;}
      if((b1==0)&&(b2==0)&&(b3==1)&&(b4==0)){dat=11;}
      if((b1==1)&&(b2==1)&&(b3==0)&&(b4==0)){dat=12;}
      if((b1==0)&&(b2==1)&&(b3==0)&&(b4==0)){dat=13;}
      if((b1==1)&&(b2==0)&&(b3==0)&&(b4==0)){dat=14;}
      if((b1==0)&&(b2==0)&&(b3==0)&&(b4==0)){dat=15;}//15秒

      if((ten1==1)&&(ten2==1)&&(ten3==1)&&(ten4==1)){dat1=0;}//0s
      if((ten1==0)&&(ten2==1)&&(ten3==1)&&(ten4==1)){dat1=10;}//10s
      if((ten1==1)&&(ten2==0)&&(ten3==1)&&(ten4==1)){dat1=20;}//20s
      if((ten1==0)&&(ten2==0)&&(ten3==1)&&(ten4==1)){dat1=30;}//30s
      if((ten1==1)&&(ten2==1)&&(ten3==0)&&(ten4==1)){dat1=40;}//40s
      if((ten1==0)&&(ten2==1)&&(ten3==0)&&(ten4==1)){dat1=50;}//50s
      if((ten1==1)&&(ten2==0)&&(ten3==0)&&(ten4==1)){dat1=60;}//60s
      if((ten1==0)&&(ten2==0)&&(ten3==0)&&(ten4==1)){dat1=70;}//70s
      if((ten1==1)&&(ten2==1)&&(ten3==1)&&(ten4==0)){dat1=80;}//80s
      if((ten1==0)&&(ten2==1)&&(ten3==1)&&(ten4==0)){dat1=90;}//90s
      if((ten1==1)&&(ten2==0)&&(ten3==1)&&(ten4==0)){dat1=100;}//100s
      if((ten1==0)&&(ten2==0)&&(ten3==1)&&(ten4==0)){dat1=110;}//110s
      if((ten1==1)&&(ten2==1)&&(ten3==0)&&(ten4==0)){dat1=120;}//120s
      if((ten1==0)&&(ten2==1)&&(ten3==0)&&(ten4==0)){dat1=130;}//130s
      if((ten1==1)&&(ten2==0)&&(ten3==0)&&(ten4==0)){dat1=140;}//140s
      if((ten1==0)&&(ten2==0)&&(ten3==0)&&(ten4==0)){dat1=150;}//150s
  }
}

/*********************************************************************************************/
