自制的Arduino 328p最小系統板用CH340C下載的問題

[復制鏈接]
ID:97023 發表于 2024-5-19 23:47 | 顯示全部樓層 |閱讀模式
最近在學習Arduino,買了一塊Arduino UNO R3的開發板,也買了兩片Arduino 328p的芯片。

02 板子.jpg

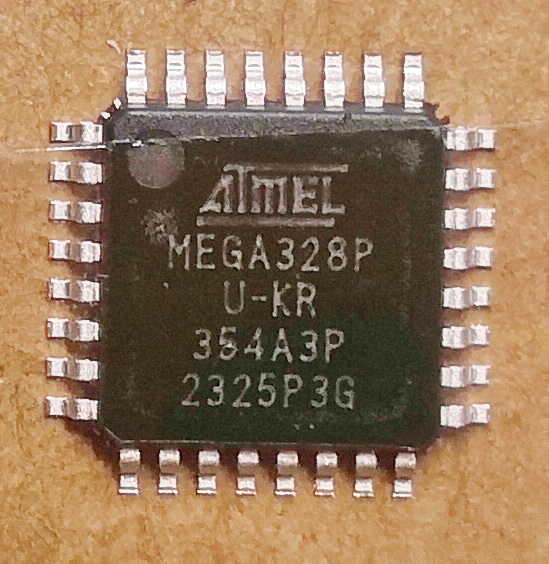

04 ATmega328P.jpg

按網上的方法,將開發板改造成Arduino ISP 編程器。

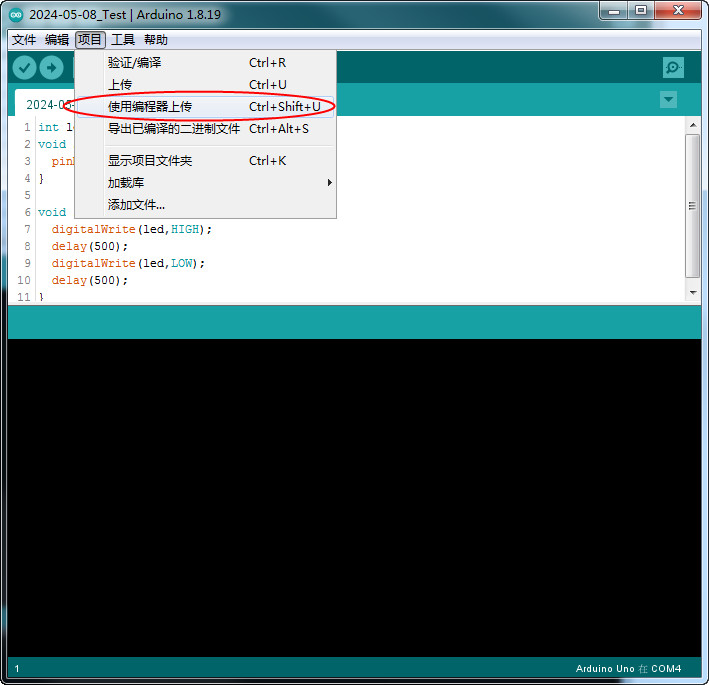

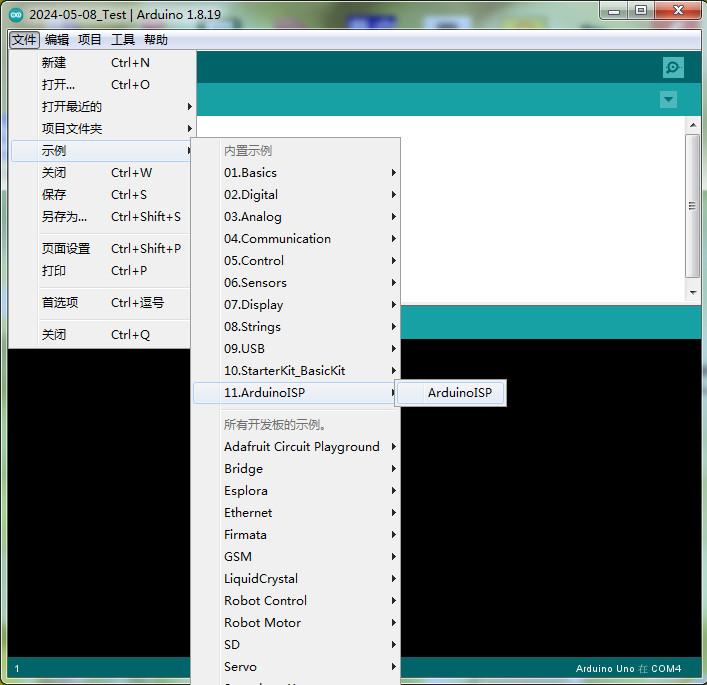

08 將UNO板改造成ISP下載器.jpg

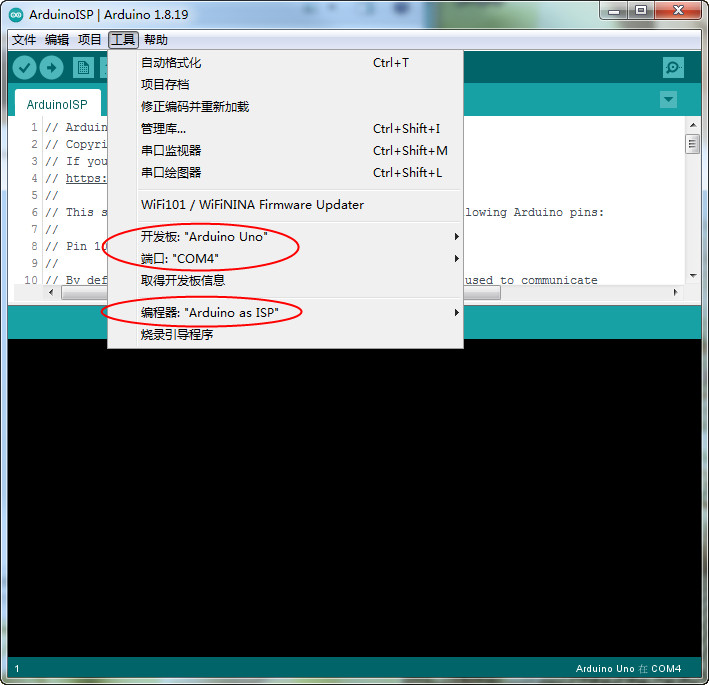

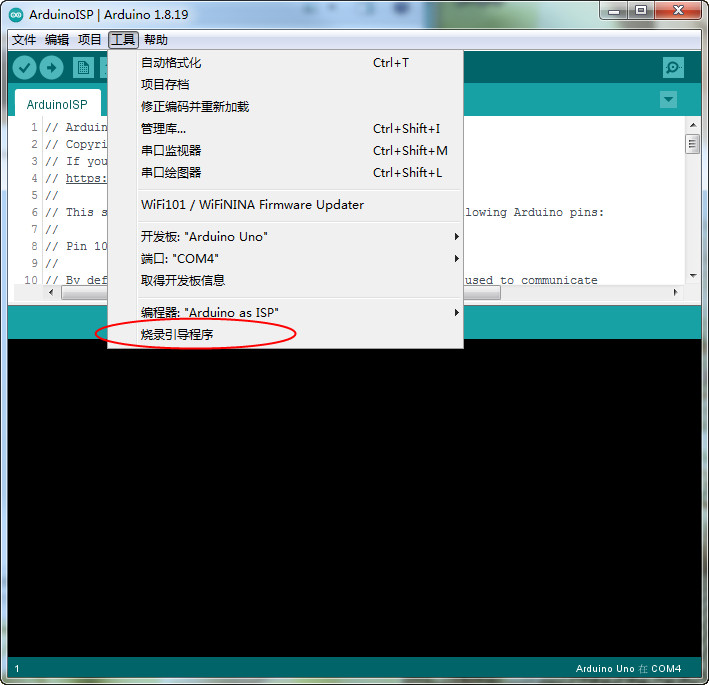

09 設置開發板.jpg

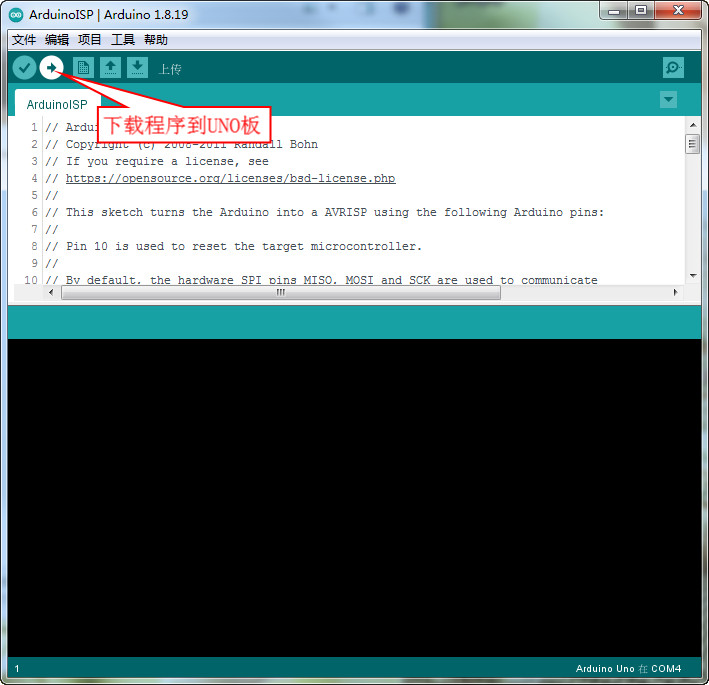

10 將ISP程序下載到開發板.jpg

然后,再用Arduino 328p 的芯片制作了一個最小系統。

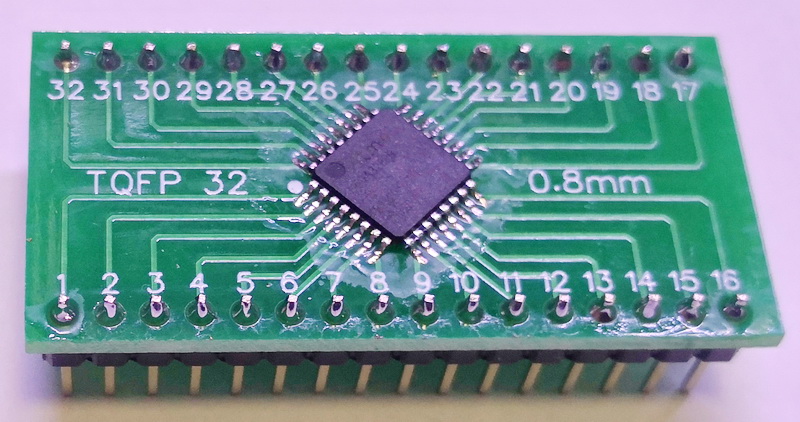

05 轉接板.jpg

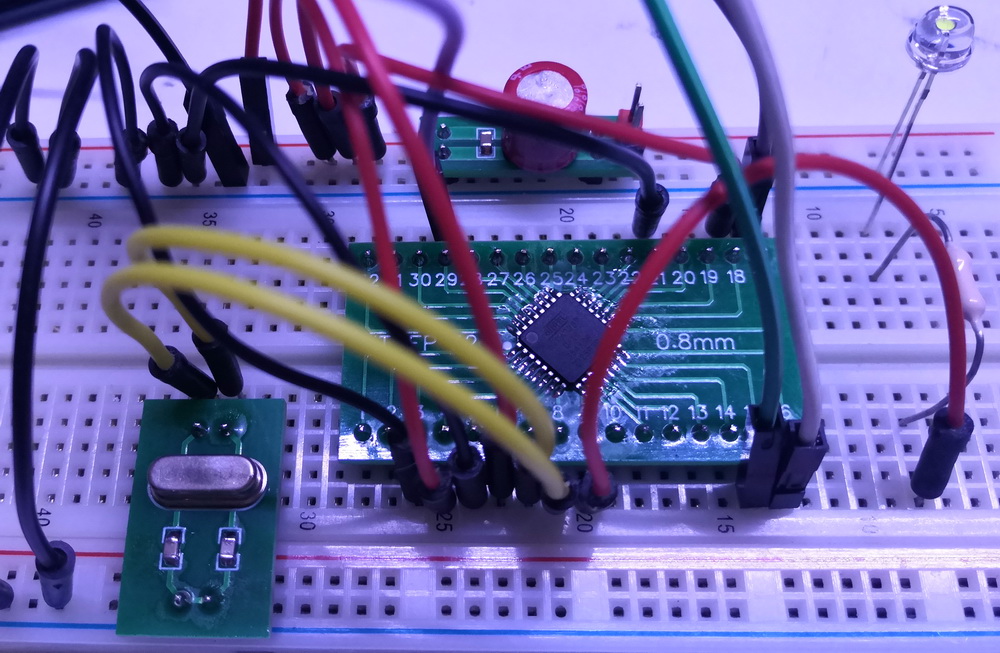

06 最小系統.jpg

將開發板與自己制作的最小系統相連:

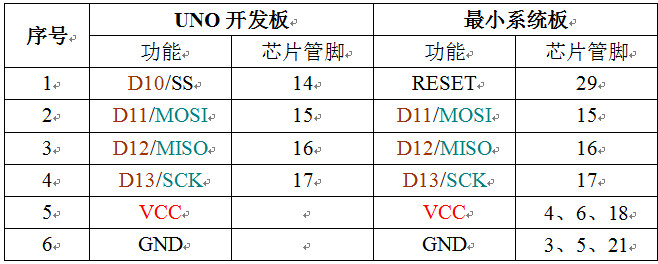

16 開發板與最小系統連接方法.jpg

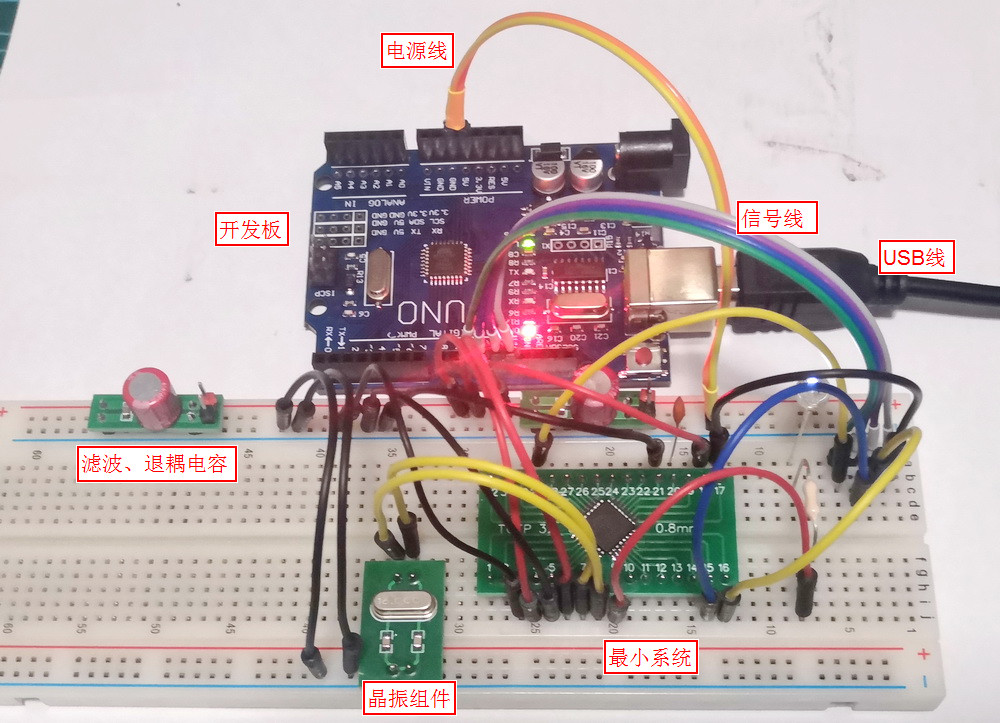

14 開發板與最小系統.jpg

先將引導程序通過開發板下載到最小系統,成功了。

11 燒錄引導程序到最小系統.jpg

寫了一個簡單的LED閃爍的程序,通過開發板下載到最小系統板,也成功了。

12 利用開發板下載程序到最小系統.jpg

本來用開發板制作的ISP編程器下載軟件也是可以的,但我想自己用CH340制作一個。
現在的問題是,通過CH340C制作的編程器下載程序到最小系統,始終不成功。

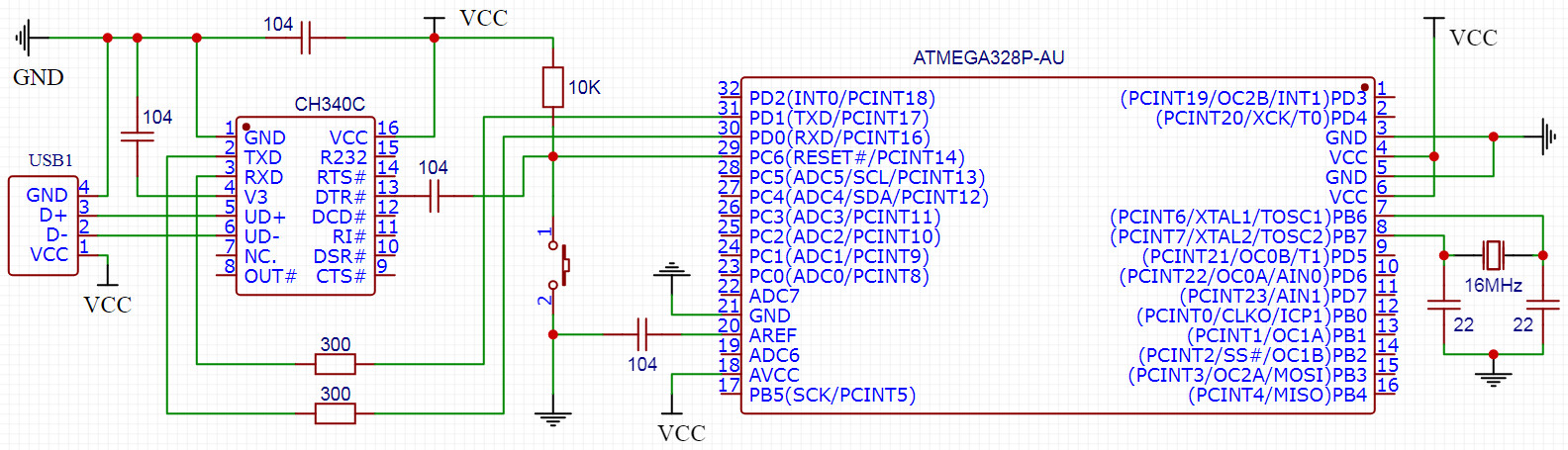

電路原理圖如下:

15 CH340C與Arduino.jpg

下載時顯示如下錯誤信息:
*****************************
Arduino:1.8.19 (Windows 7), 開發板:"Arduino Uno"
項目使用了 934 字節,占用了 (2%) 程序存儲空間。最大為 32256 字節。全局變量使用了9字節,(0%)的動態內存,余留2039字節局部變量。最大為2048字節。
avrdude: stk500_recv(): programmer is not respondingavrdude:
stk500_getsync() attempt 1 of 10: not in sync: resp=0xd1avrdude:
stk500_recv(): programmer is not respondingavrdude:
stk500_getsync() attempt 2 of 10: not in sync: resp=0xd1avrdude:
stk500_recv(): programmer is not respondingavrdude:
stk500_getsync() attempt 3 of 10: not in sync: resp=0xd1avrdude:
stk500_recv(): programmer is not respondingavrdude:
stk500_getsync() attempt 4 of 10: not in sync: resp=0xd1avrdude:
stk500_recv(): programmer is not respondingavrdude:
stk500_getsync() attempt 5 of 10: not in sync: resp=0xd1avrdude:
stk500_recv(): programmer is not respondingavrdude:
stk500_getsync() attempt 6 of 10: not in sync: resp=0xd1avrdude:
stk500_recv(): programmer is not respondingavrdude:
stk500_getsync() attempt 7 of 10: not in sync: resp=0xd1avrdude:
stk500_recv(): programmer is not respondingavrdude:
stk500_getsync() attempt 8 of 10: not in sync: resp=0xd1avrdude:
stk500_recv(): programmer is not respondingavrdude:
stk500_getsync() attempt 9 of 10: not in sync: resp=0xd1avrdude:
stk500_recv(): programmer is not respondingavrdude:
stk500_getsync() attempt 10 of 10: not in sync: resp=0xd1Problem
uploading to board.  See hc/en-us/sections/360003198300 for suggestions.
*****************************
意思是:“程序員沒有回應avrdude:”
也試過左邊CH340C部分,給STC單片機下載程序是沒有問題的,無非是在下載程序時要“冷啟動”一下STC的單片機。
在給Arduino最小系統下載程序時,也按過復位開關,也不行。
分析了Arduino UNO開發板的電路,它也是用CH340C的下載電路,本來CH340C可以不用外接晶振的,但它接了。
我也在自制的CH340C電路中加上了晶振部分,但還是不行。
請懂的朋友幫幫我,謝謝了。
