帶觸摸的單片機芯片A96T218引腳圖和pdf規(guī)格書下載

ID:238659 · 發(fā)表于 2017-10-11 17:59

分享一個ABOV UM_A96T218_V1.2_EN.pdf規(guī)格書，TK可以和LED共用的觸摸芯片

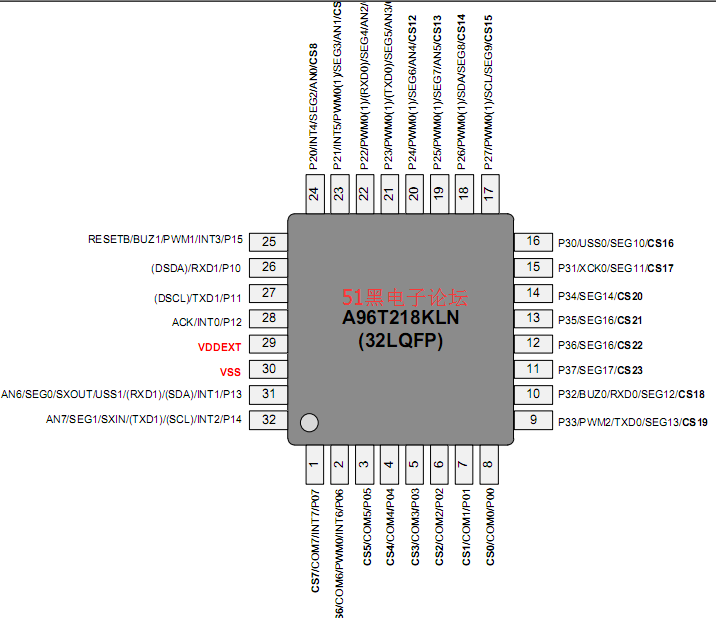

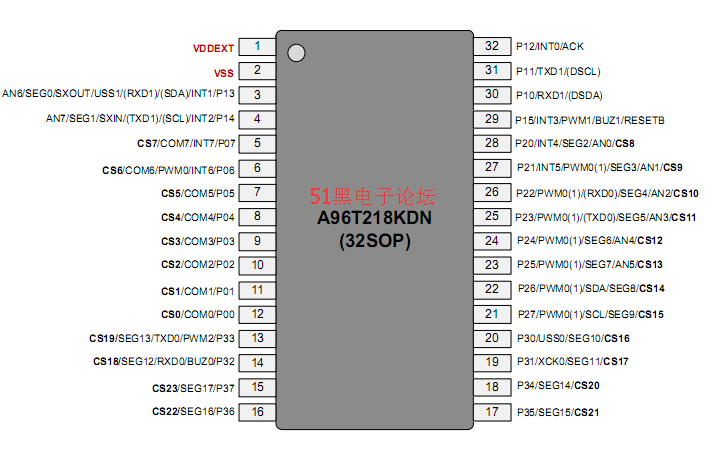

A96T218引腳圖（包含有各種封裝格式的）：

Main features
8-bit Microcontroller with high performance M8051 CPU
Basic MCU Function
– 32K bytes Flash Code Memory
– Code Area Protection
– 256 bytes SRAM Data Memory
– 1,792 bytes XRAM
Built-in Analog Function
– Power-On Reset and Low Voltage Indicator Reset
– Internal 16 MHz RC Oscillator
24CH Self Capactitive Touch Switch
– 16-bit Sensing Resolution
– Fast Initial Self-Calibration
– Key Detection Mode : Single/Multi-Mode
– The Improvement of SNR by Bias-Calibration in Analog Sensing Block

完整的pdf格式文檔51黑下載地址：

UM_A96T218_V1.2_EN.pdf (5.13 MB, 下載次數: 22)
