高保真音量控制芯片WM8816引腳圖與pdf資料手冊下載

ID:377188 · 發表于 2018-7-22 11:07

高保真音量控制芯片 WM8816 技術資料

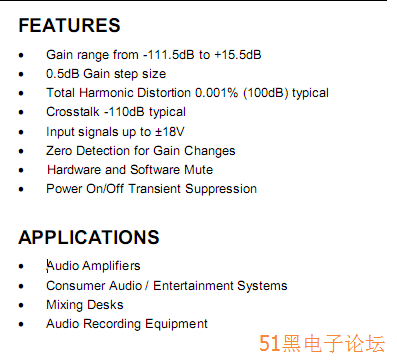

WM8816引腳圖：

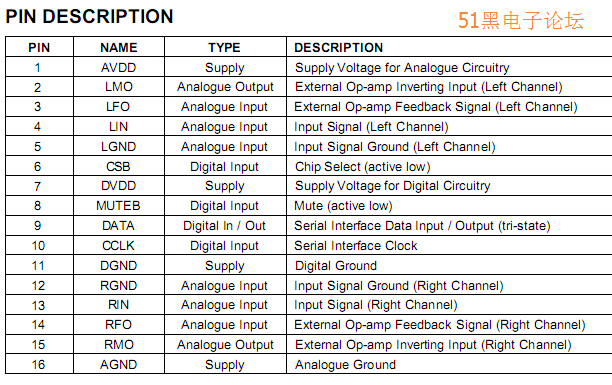

WM8816管腳功能定義：

DESCRIPTION
The WM8816 is a highly linear stereo volume control for
audio systems. The design is based on resistor chains with
external op-amps, which provides flexibility for the supply
voltage, signal swing, noise floor and cost optimisation. The
gain of each channel can be independently programmed
from -111.5dB to +15.5dB through a digital serial control
interface.
Audible clicks on gain changes are eliminated by changing
gains only when a zero crossing has been detected in the
signal. The device also features peak level detection, which
can be used for Automatic Gain Control. The WM8816
operates from a single +5V supply and accepts signal input
levels up to ±18V.
The WM8816 is available in a 16-pin SOIC package. It is
guaranteed over a temperature range of -40° to 85°C.

完整的pdf格式文檔51黑下載地址：

WM8816技術資料.pdf (369.77 KB, 下載次數: 31)
