卡爾曼濾波在單片機上的使用

作者:佚名   來源:本站原創   點擊數:  更新時間:2012年11月29日   【字體:







#ifndef _KALMAN_H_
#define _KALMAN_H_

extern  KalmanGain;//  卡爾曼增益
extern  EstimateCovariance;//估計協方差
extern  MeasureCovariance;//測量協方差
extern  EstimateValue;//估計值
extern void KalmanFilterInit(void);
extern      KalmanFilter(   Measure);
#endif



#include "config.h"
#include "math.h"

  KalmanGain;//  卡爾曼增益
  EstimateCovariance;//估計協方差
  MeasureCovariance;//測量協方差
  EstimateValue;//估計值

void KalmanFilterInit(void);

extern    float  KalmanFilter(float   Measure);

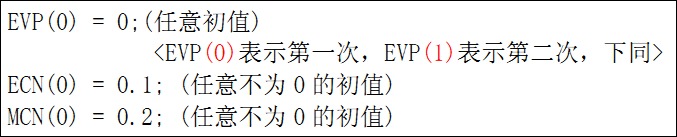

void KalmanFilterInit(void)
{
EstimateValue=0;

EstimateCovariance=0.1;
 MeasureCovariance=0.02;


}

 KalmanFilter(   Measure)
{

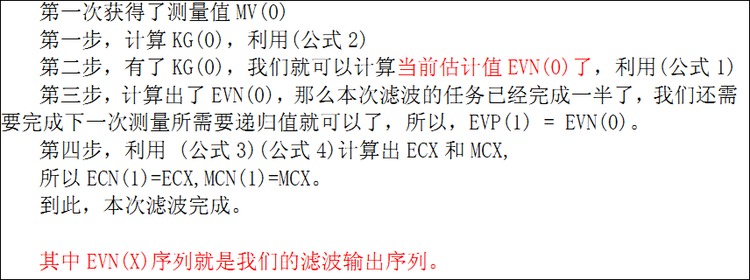

//計算卡爾曼增益
KalmanGain=EstimateCovariance*sqrt(1/(EstimateCovariance*EstimateCovariance+MeasureCovariance*MeasureCovariance));

//計算本次濾波估計值
EstimateValue=EstimateValue+KalmanGain*(Measure-EstimateValue);

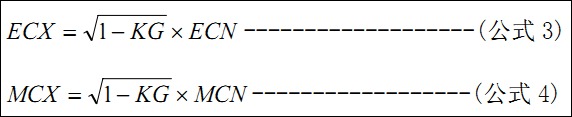

//更新估計協方差

EstimateCovariance=sqrt(1-KalmanGain)*EstimateCovariance;
//更新測量方差
MeasureCovariance=sqrt(1-KalmanGain)*MeasureCovariance;
//返回估計值
return EstimateValue;
}
