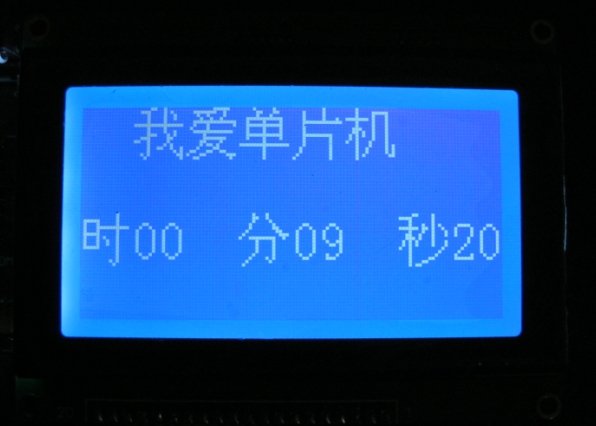

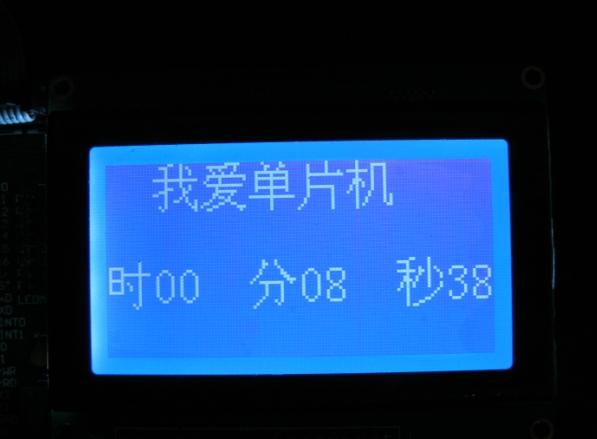

顯示結果:
芯片晶振11.0592
#include <reg51.h>
#define uchar unsigned char
#define uint unsigned int
#define dataport P0 //數據口
sbit CS1=P2^4; //左顯引腳
sbit CS2=P2^3; //右顯引腳
sbit RST=P2^2; //復位引腳
sbit rs=P2^7; //數據或指令寄存器引腳
sbit rw=P2^6; //讀或?qū)懖僮饕_
sbit en=P2^5; //讀寫時能引腳
void delay(unsigned long v); //延時
void wcode(uchar c,uchar csl,uchar csr); //寫指令
void wdata(uchar c,uchar csl,uchar csr); //寫數據
void set_startline(uchar i); //設置起始行
void set_xy(uchar x,uchar y); //設置X,Y方向
void dison_off(uchar k); //顯示器開或關
void reset(); //復位
void lcd_init(); //顯示器初始化
void lw(uchar x,uchar y,uchar dd); //將數據寫入左右半屏
void display_hz(uchar xx,uchar yy,uchar n,uchar fb); //顯示漢字函數
uchar code hz[]; //漢字字摸
uchar code asc[];//數字字摸
uchar hour1,hour0;
uchar minute1,minute0;
uchar sec1,sec0;
uchar hour=0,minute=0,sec=0;
uchar osc=0;
void Timer0(void) //設定定時器0 50ms
{
TMOD = 0x01;
TH0 = 0x3C;
TL0 = 0x0B0;
EA = 1;
ET0 = 1;
TR0 = 1;
}
void time0init()interrupt 1 //定時器中斷執行，時，分，秒計算
{
TR0=0;
osc++;
if(osc==20){sec++;osc=0;}
if(sec==60){minute++; sec=0;}
if(minute==60){hour++;minute=0;}
if(hour==24){hour=0;}
hour1=hour/10;
hour0=hour%10;
minute1=minute/10;
minute0=minute%10;
sec1=sec/10;
sec0=sec%10;
TH0=0x3c;
TL0=0x0B0;
EA=1;
ET0=1;
TF0=0;
TR0=1;
}
#include "12864hh.h"
void main(void)
{
lcd_init();
delay(1000);
Timer0();
while(1)
{
display_hz(2,0,0,0);
display_hz(4,0,1,0);
display_hz(6,0,2,0);
display_hz(8,0,3,0);
display_hz(10,0,4,0);
display_hz(0,4,5,0);
display_hz(6,4,6,0);
display_hz(12,4,7,0);
display_asc(2,4,hour1,0);
display_asc(3,4,hour0,0);
display_asc(8,4,minute1,0);
display_asc(9,4,minute0,0);
display_asc(14,4,sec1,0);
display_asc(15,4,sec0,0);
}
delay(60000);
}
//-------------------------中文字字模------------------------------
uchar code hz[]={
0x20,0x04,0x20,0x04,0x22,0x42,0x22,0x82,0xFE,0x7F,0x21,0x01,0x21,0x01,0x20,0x10,
0x20,0x10,0xFF,0x08,0x20,0x07,0x22,0x1A,0xAC,0x21,0x20,0x40,0x20,0xF0,0x00,0x00,/*"我",0*/
0x00,0x40,0x40,0x20,0xB2,0xA0,0x96,0x90,0x9A,0x4C,0x92,0x47,0xF6,0x2A,0x9A,0x2A,
0x93,0x12,0x91,0x1A,0x99,0x26,0x97,0x22,0x91,0x40,0x90,0xC0,0x30,0x40,0x00,0x00,/*"愛",1*/
0x00,0x08,0x00,0x08,0xF8,0x0B,0x28,0x09,0x29,0x09,0x2E,0x09,0x2A,0x09,0xF8,0xFF,
0x28,0x09,0x2C,0x09,0x2B,0x09,0x2A,0x09,0xF8,0x0B,0x00,0x08,0x00,0x08,0x00,0x00,/*"單",2*/
0x00,0x80,0x00,0x40,0x00,0x30,0xFE,0x0F,0x10,0x01,0x10,0x01,0x10,0x01,0x10,0x01,
0x10,0x01,0x1F,0x01,0x10,0x01,0x10,0xFF,0x10,0x00,0x18,0x00,0x10,0x00,0x00,0x00,/*"片",3*/
0x08,0x04,0x08,0x03,0xC8,0x00,0xFF,0xFF,0x48,0x00,0x88,0x41,0x08,0x30,0x00,0x0C,
0xFE,0x03,0x02,0x00,0x02,0x00,0x02,0x00,0xFE,0x3F,0x00,0x40,0x00,0x78,0x00,0x00, /*機",4*/
0x00,0x00,0xFC,0x07,0x44,0x04,0x44,0x04,0x44,0x04,0xFC,0x07,0x10,0x00,0x90,0x00,
0x10,0x03,0x10,0x40,0x10,0x80,0xFF,0x7F,0x10,0x00,0x10,0x00,0x10,0x00,0x00,0x00,/*"時",0*/
0x80,0x00,0x40,0x80,0x20,0x40,0x98,0x20,0x87,0x10,0x82,0x0F,0x80,0x00,0x80,0x00,
0x83,0x20,0x84,0x40,0x98,0x3F,0x30,0x00,0x60,0x00,0xC0,0x00,0x40,0x00,0x00,0x00,/*"分",1*/
0x12,0x04,0x12,0x03,0xD2,0x00,0xFE,0xFF,0x91,0x00,0x11,0x83,0xC0,0x80,0x38,0x40,
0x10,0x40,0x00,0x20,0xFF,0x23,0x00,0x10,0x08,0x08,0x10,0x04,0x60,0x03,0x00,0x00};/*"秒",2*/
//------------------------------數字字摸----------------------------------
uchar code asc[]={
0x00,0x00,0xE0,0x0F,0x10,0x10,0x08,0x20,0x08,0x20,0x10,0x10,0xE0,0x0F,0x00,0x00,/*"0",0*/
0x00,0x00,0x10,0x20,0x10,0x20,0xF8,0x3F,0x00,0x20,0x00,0x20,0x00,0x00,0x00,0x00,/*"1",1*/
0x00,0x00,0x70,0x30,0x08,0x28,0x08,0x24,0x08,0x22,0x88,0x21,0x70,0x30,0x00,0x00,/*"2",2*/
0x00,0x00,0x30,0x18,0x08,0x20,0x88,0x20,0x88,0x20,0x48,0x11,0x30,0x0E,0x00,0x00,/*"3",3*/
0x00,0x00,0x00,0x07,0xC0,0x04,0x20,0x24,0x10,0x24,0xF8,0x3F,0x00,0x24,0x00,0x00,/*"4",4*/
0x00,0x00,0xF8,0x19,0x08,0x21,0x88,0x20,0x88,0x20,0x08,0x11,0x08,0x0E,0x00,0x00,/*"5",5*/
0x00,0x00,0xE0,0x0F,0x10,0x11,0x88,0x20,0x88,0x20,0x18,0x11,0x00,0x0E,0x00,0x00,/*"6",6*/
0x00,0x00,0x38,0x00,0x08,0x00,0x08,0x3F,0xC8,0x00,0x38,0x00,0x08,0x00,0x00,0x00,/*"7",7*/
0x00,0x00,0x70,0x1C,0x88,0x22,0x08,0x21,0x08,0x21,0x88,0x22,0x70,0x1C,0x00,0x00,/*"8",8*/
0x00,0x00,0xE0,0x00,0x10,0x31,0x08,0x22,0x08,0x22,0x10,0x11,0xE0,0x0F,0x00,0x00,/*"9",9*/
0x00,0x00,0xE0,0x0F,0x10,0x10,0x08,0x20,0x08,0x20,0x10,0x10,0xE0,0x0F,0x00,0x00};/*"0",10*/
//------------------------------庫函數---------------------------
void delay(unsigned long v) //延時子函數
{
while(v--);
}
void lcd_busy() //繁忙標志
{
rs=0;
rw=1;
dataport=0xff;
while(1)
{
en=1;
if(dataport<0x80)break;
en=0;
}
en=0;
}
void wcode(uchar c,uchar csl,uchar csr) //寫指令
{
CS1=csl;
CS2=csr;
lcd_busy();
rs=0;
rw=0;
dataport=c;
en=1;
en=0;
}
void wdata(uchar c,uchar csl,uchar csr) //寫數據
{
CS1=csl;
CS2=csr;
lcd_busy();
rs=1;
rw=0;
dataport=c;
en=1;
en=0;
}
void lw(uchar x,uchar y,uchar dd) //寫一個字節進芯片
{
if(x>=64)
{
set_xy(x-64,y);
wdata(dd,0,1);
}
else
{
set_xy(x,y);
wdata(dd,1,0);
}
}
void set_startline(uchar i) //設定起始行
{
i=0xc0+i;
wcode(i,1,1);
}
void set_xy(uchar x,uchar y) //定位x,y位置
{
x=x+0x40;
y=y+0xb8;
wcode(x,1,1);
wcode(y,1,1);
}
void dison_off(uchar k) //開，關顯示
{
k=k+0x3e;
wcode(k,1,1);
}
void reset()
{
RST=0;
delay(40);
RST=1;
delay(40);
}
void lcd_init(void) //芯片初始化
{uchar x,y;
reset();
set_startline(0);
dison_off(0);
for(y=0;y<8;y++)
{
for(x=0;x<128;x++)lw(x,y,0);
}
dison_off(1);
}
void display_hz(uchar xx, uchar yy, uchar n, uchar fb) //顯示漢字逐列式
{
uchar i,dx;
for(i=0;i<16;i++)
{dx=hz[2*i+n*32];
if(fb)dx=255-dx;
lw(xx*8+i,yy,dx);
dx=hz[(2*i+1)+n*32];
if(fb)dx=255-dx;
lw(xx*8+i,yy+1,dx);
}
}
void display_asc(uchar xx,uchar yy,uchar n,uchar fb) //顯示數字逐列式
{
uchar i,dx;
for(i=0;i<8;i++)
{
dx=asc[2*i+n*16];
if(fb)dx=255-dx;
lw(xx*8+i,yy,dx);
dx=asc[2*i+1+n*16];
if(fb)dx=255-dx;
lw(xx*8+i,yy+1,dx);
}
}
