Arduino用鍵盤控制小車

原本想把攝像頭接上去的，但找不到好的支架固定，所以先暫時擱著。



上次用Rboduino I/O Expansion V3.0擴展板插上去才能用APC220發射模塊，后來發現，如果不安裝什么云臺的話，用Expansion V3.0板子有點浪費，還不如用面包版呢！

=====================================================================================================

int IN1 = 2;
int EN1 = 3;
int IN2 = 4;
int IN3 = 5;
int EN2 = 6;
int IN4 = 7;

void stop(void)
        {
          digitalWrite(IN1,LOW);
          digitalWrite(IN2,LOW);
          digitalWrite(IN3,LOW);
          digitalWrite(IN4,LOW);
        }

void advance_l(void)
        {
          digitalWrite(IN1,HIGH);
          digitalWrite(IN2,LOW);
        }

void advance_r(void)
       {
          digitalWrite(IN3,LOW);
          digitalWrite(IN4,HIGH);
        }

void back_off_l(void)
        {
          digitalWrite(IN1,LOW);
          digitalWrite(IN2,HIGH);
        }

void back_off_r(void)
       {
          digitalWrite(IN3,HIGH);
          digitalWrite(IN4,LOW);
        }


void setup(void)
{
    int i;
    for(i=2;i<=7;i++)
    pinMode(i, OUTPUT);
    digitalWrite(EN1,HIGH);
    digitalWrite(EN2,HIGH);
    Serial.begin(38400);//這個是我的APC220無線發射模塊的發射波特率
}

void loop(void)
{
       char val = Serial.read();
       if(val!=-1)
         {
           switch(val)
           {
             case 'w'://前進
                         advance_l();
                         advance_r();
                         break;
              case 's'://后退
                         back_off_l();
                         back_off_r();
                         break;
             case 'a'://原地左轉
                         advance_r();
                         back_off_l();
                         break;
             case 'd'://原地右轉
                         advance_l();
                         back_off_r();
                         break;
             case 'q'://左邊的輪子靜止，右邊的輪子前進
                         advance_r();
                         break;
             case 'e'://右邊的輪子靜止，左邊的輪子前進
                         advance_l();
                         break;
             case 'z'://左邊的輪子靜止，右邊的輪子后退
                         back_off_r();
                         break;
             case 'c'://右邊的輪子靜止，左邊的輪子后退
                         back_off_l();
                         break;

             }
           delay(30);
          }
        else stop();
}

======================================================================================================

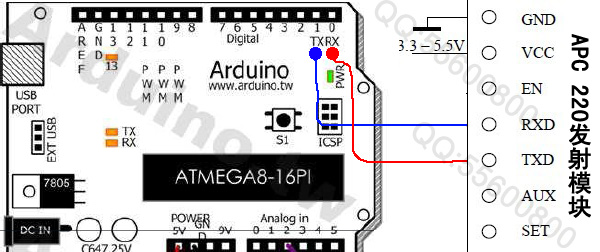

APC無線發射模塊的針腳圖：

只需要接4個針腳，APC就可以運行了。GND：接地。VCC接5V。統統一起連接到Arduino板子上。

====================================================================================================

視頻就不放出來了。
